In the previous article, we introduced the characteristics and composition of the integrated board. Below, we will introduce the process flow and application cases of the integrated board.

-03-

Heat preservation decoration integrated board process flow

Technic

①     Production process

Substrate → sanding → sealing primer → topcoat coating → Peritoneum → composite → Finished board.

②     Construction technology

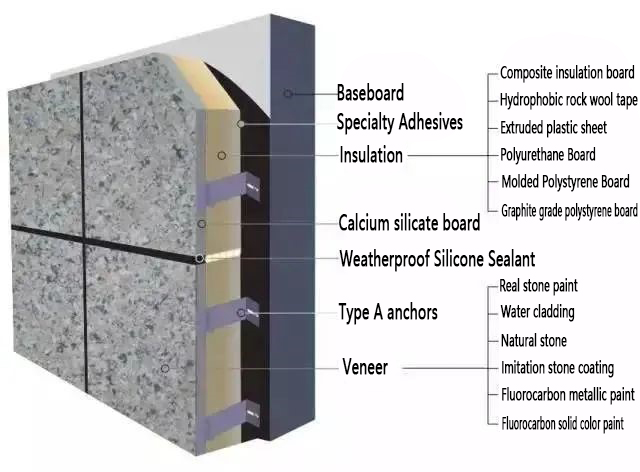

Exterior wall insulation decoration integrated board installation and construction process is the most important part of the exterior wall insulation decoration integrated system, the mainstream integrated installation methods are mainly three kinds: paste type, dry hanging type, sticky anchor combined type.

• Bond type

In the process of installing the integrated board on the wall, the wall and the integrated board are only bonded by special high-strength bonding mortar, the bonding area needs to reach more than 80%, and the joint of the board is sealed by bonding mortar or polyurethane.

• Dry hanging type

Similar to dry hanging stone, it is necessary to pre-install steel keel on the base of the wall, and the insulation decorative integrated board is connected with the keel through a special special anchor, and the integrated board and the wall base are filled with foamed polyurethane or other materials.

• Bonded anchorage type

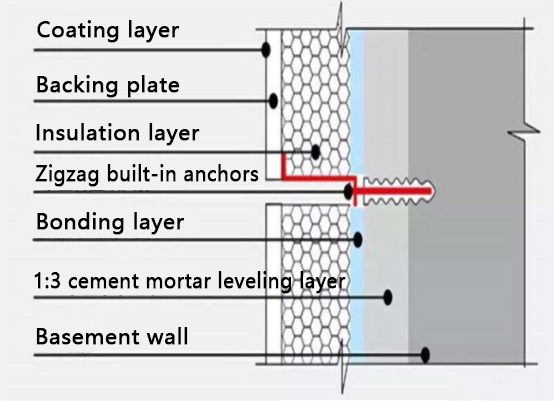

The adhesive anchor combination type is mainly based on the construction requirements, the external insulation system of the external wall of the thermal insulation decorative board uses the combination of bonding and anchoring, and the thermal insulation decorative board is fixed on the base wall. Combined with the advantages of fully bonded and dry hanging, it is widely used in engineering.

There are few metal components for the installation of the thermal insulation decorative integrated board, and the installation only needs to add anchorage parts at the bottom, unlike the traditional curtain wall, which requires a large number of keels, and unlike the thin plaster system, which requires the installation of a large number of thermal insulation nails.

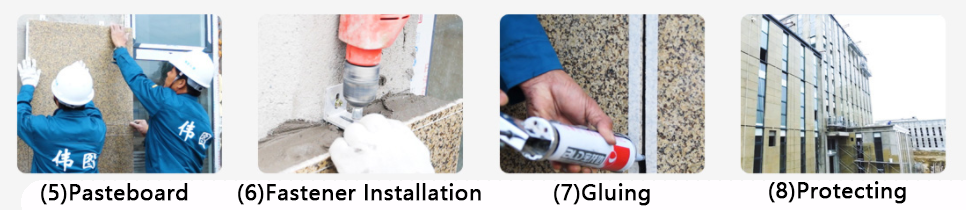

Insulation decoration integrated board construction steps:

Base inspection → Base wall empty, fall off and leveling treatment → Base line and division → Paste thermal insulation decorative board → Anchor decorative board with special fasteners → caulk with thermal insulation foam strip → Clean board gap → Paste paper tape → Pour silicone weatherproof sealant → Install special exhaust plug → tear off paper → Clean panel → Completion acceptance.

-04-

Application

Insulation board no radiation, low cost, green environmental protection, can be widely used in all kinds of public buildings and family interior decoration, but also save a lot of materials, manpower and time, reduce the production of cement coal caused by air pollution, through intelligent production, decorative surface can be made of different colors, a variety of textures and stone texture effects.

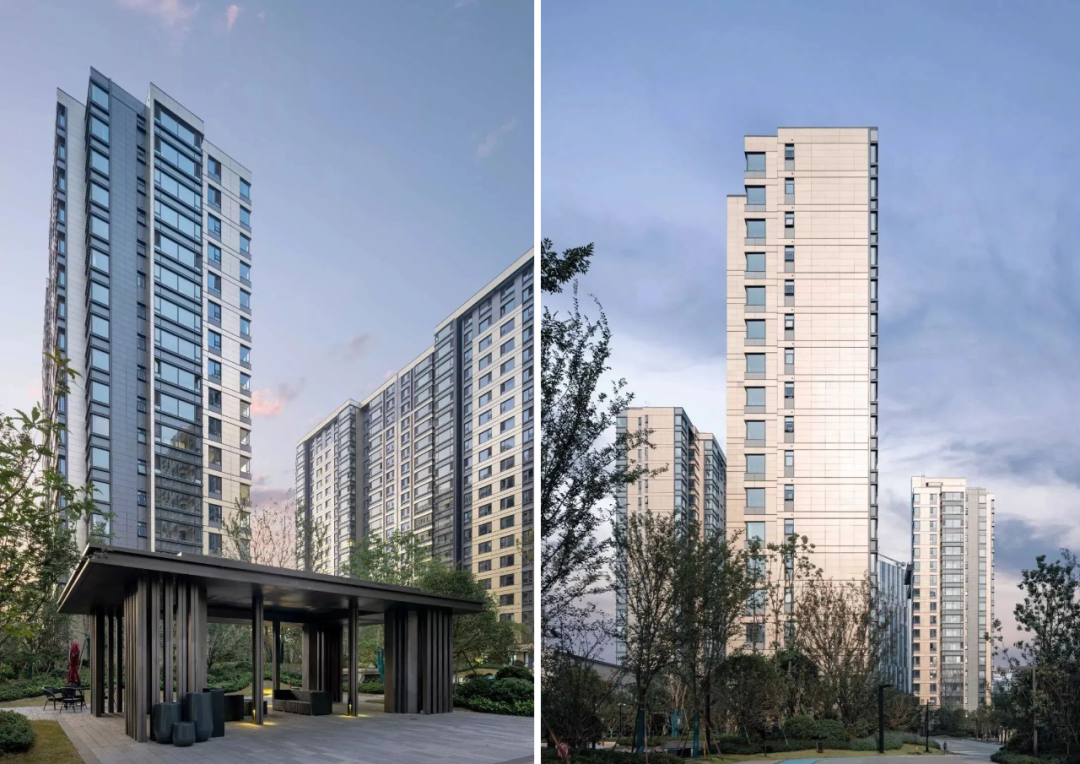

In the past two years, energy-saving decorative integrated panels have gradually replaced stone. Many projects use aluminum plate imitation stone insulation integrated board, not only the appearance level is high, but also play heat preservation, decoration, fire protection and other functions, not afraid of sun and rain.

The facade of large-area dry hanging stone + insulation integrated board, with advanced gray tone, is enough to sell.

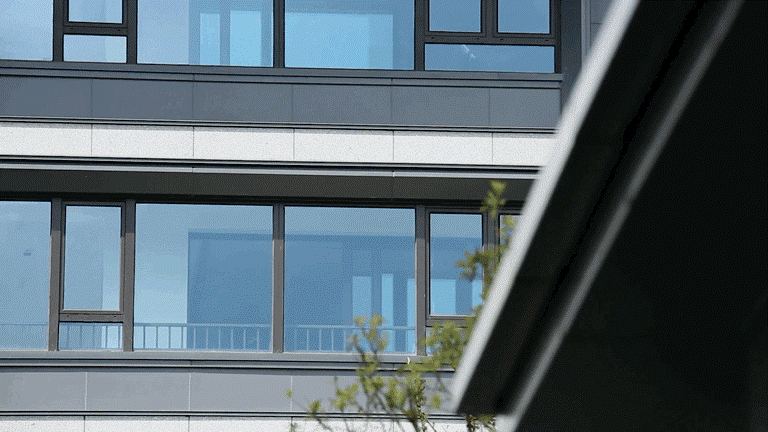

High standard configuration of decorative insulation integrated board, with high quality hollow low-e glass, beautiful at the same time, but also has better heat insulation, temperature control effect, to ensure higher comfort.

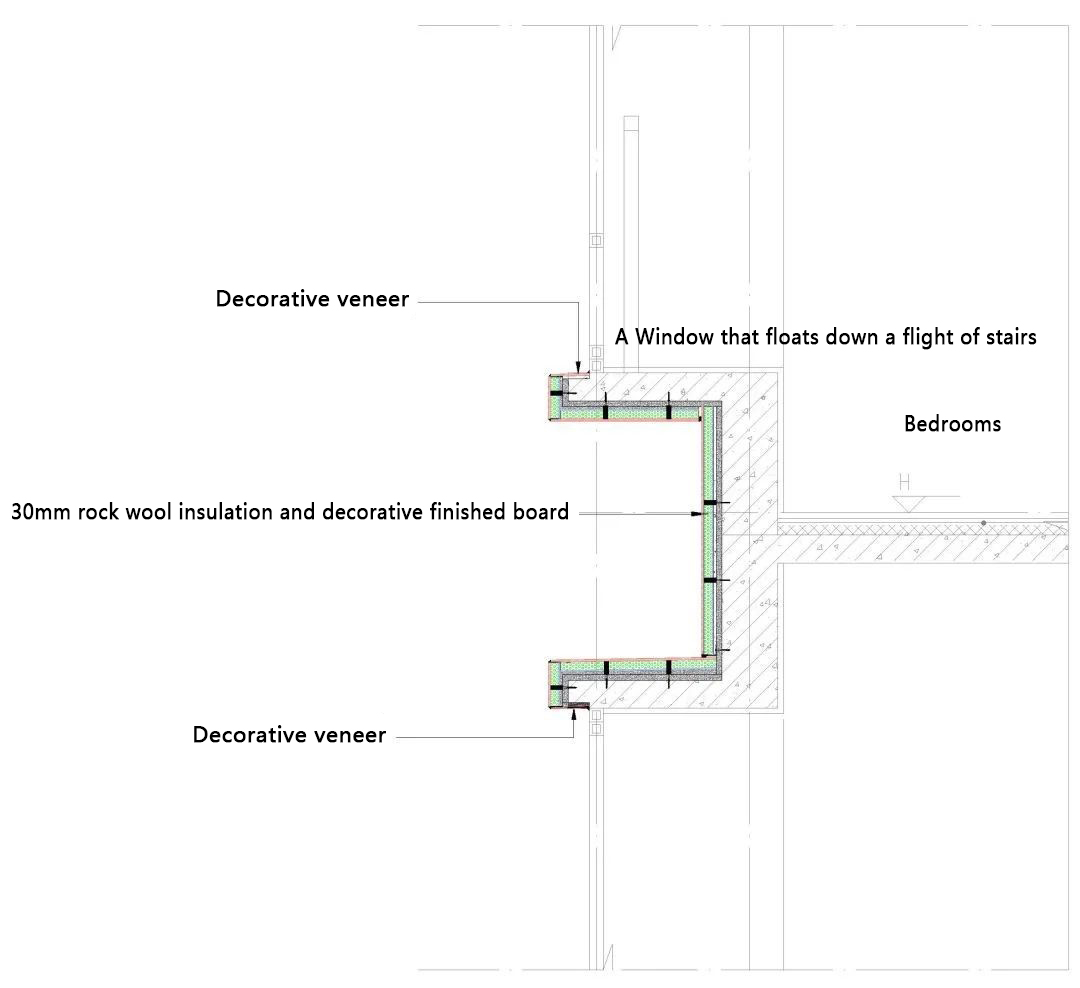

The facade uses the method of aluminum insulation integrated board, so the insulation of the whole villa has increased by 20 cm, and this is not easy to find the bright spot can only be realized after really living in the house of Yanheng, it is also because of such insulation, the residents can thoroughly and fully enjoy the landscape vision brought by the floor glass, these are the power of design.

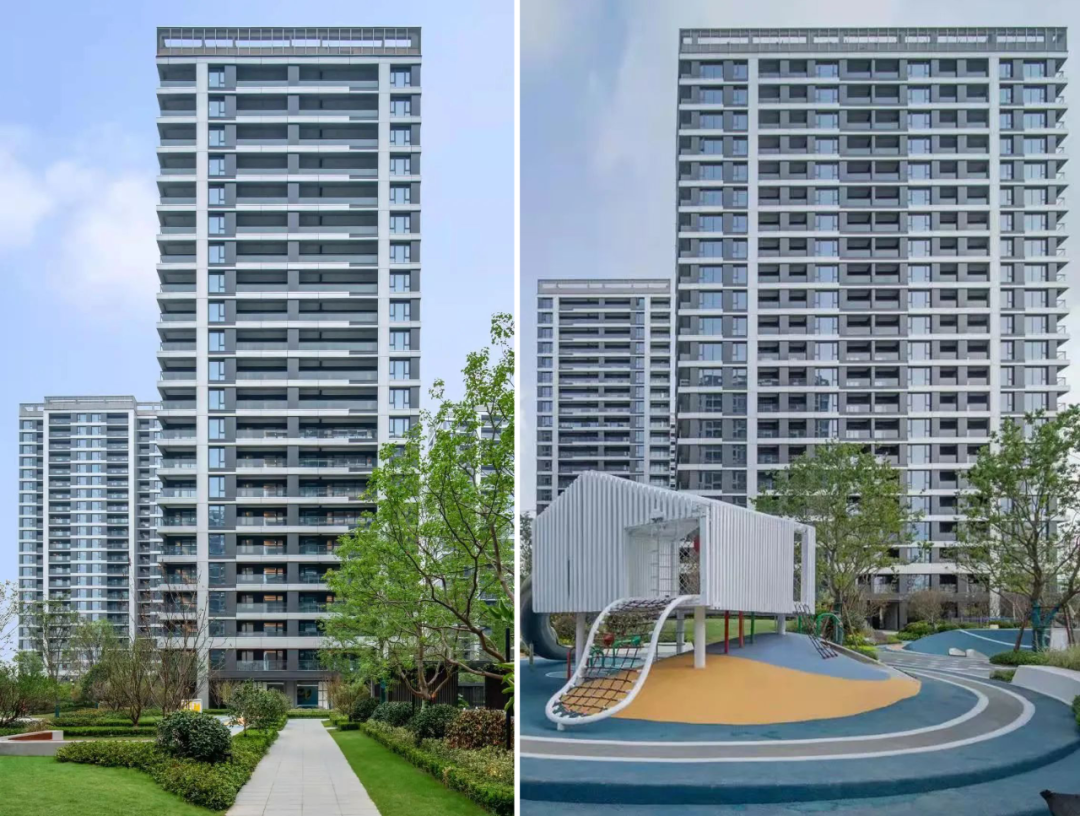

Green building materials such as the new material integrated board, while fully reflecting the modern architectural style, maximize the flatness of the facade and retain the texture of the building.

Combined with the elements of traditional architecture overhang, simple fashion and calm atmosphere. The bottom of the building adopts beige stone insulation integrated board, the upper part uses beige real stone paint and coffee elastic paint, and the local embellishment of metal aluminum plate eaves and back word pattern waist line, the overall concise and bright, but not lack of delicate details, improve the building quality.

The stone of the 1-3 layers of the facade base is dry hung, and the 4 layers and above are covered with decorative insulation integrated board, which is very close to the effect of the stone, and the combination of the base stone is very natural.

The main material of the project facade is a combination of light champagne gold integrated board and dark grey integrated board. The two panels are warm and cold, which are mutually harmonized.

Metal particles are added to the plates, and the building facade presents a new and bright effect in the sun, like covering a shallow halo, and presents subtle changes in light and shade under different lighting conditions in the morning and evening of the day.

Classic three-stage style, the use of high construction facade, the use of glass curtain wall plus one panel facade to create a natural holiday wind.

-05-

Insulation decoration integrated board price

The price of thermal insulation decorative integrated board is affected by a variety of factors, mainly including veneer veneer, thermal insulation core material, composite glue, composite costs, machinery and tools costs, electricity, handling costs, packaging costs, management fees, profits, taxes and so on.

At present, the price on the market is about 30-70 SGD /㎡. (for reference only)

This should be based on the specific situation, insulation decoration integrated board according to different materials, the price will be different.

Finish + panel + insulation = total cost

Conclusion:

Insulation integrated board instead of stone curtain wall, the lower cost to achieve realistic stone effect, not only reduces the cost of construction and products, but also reduces the building load, saving steel resources, simple construction, is the best alternative to stone dry hanging products.
