Insulation decoration integrated board
Stone curtain wall has a new alternative material!!
In recent years, vigorously develop green buildings, promote energy saving and environmental protection of green building materials, natural stone is a non-renewable resource, we protect the ecology at the same time, some alternative natural stone materials, gradually become a trend. At present, exterior wall insulation decoration integrated board has become the main product of building exterior wall.
The new material to be introduced today is a new exterior wall decoration material - thermal insulation decoration integrated board, which can not only replace traditional stone but also take into account the thermal insulation decorative effect.

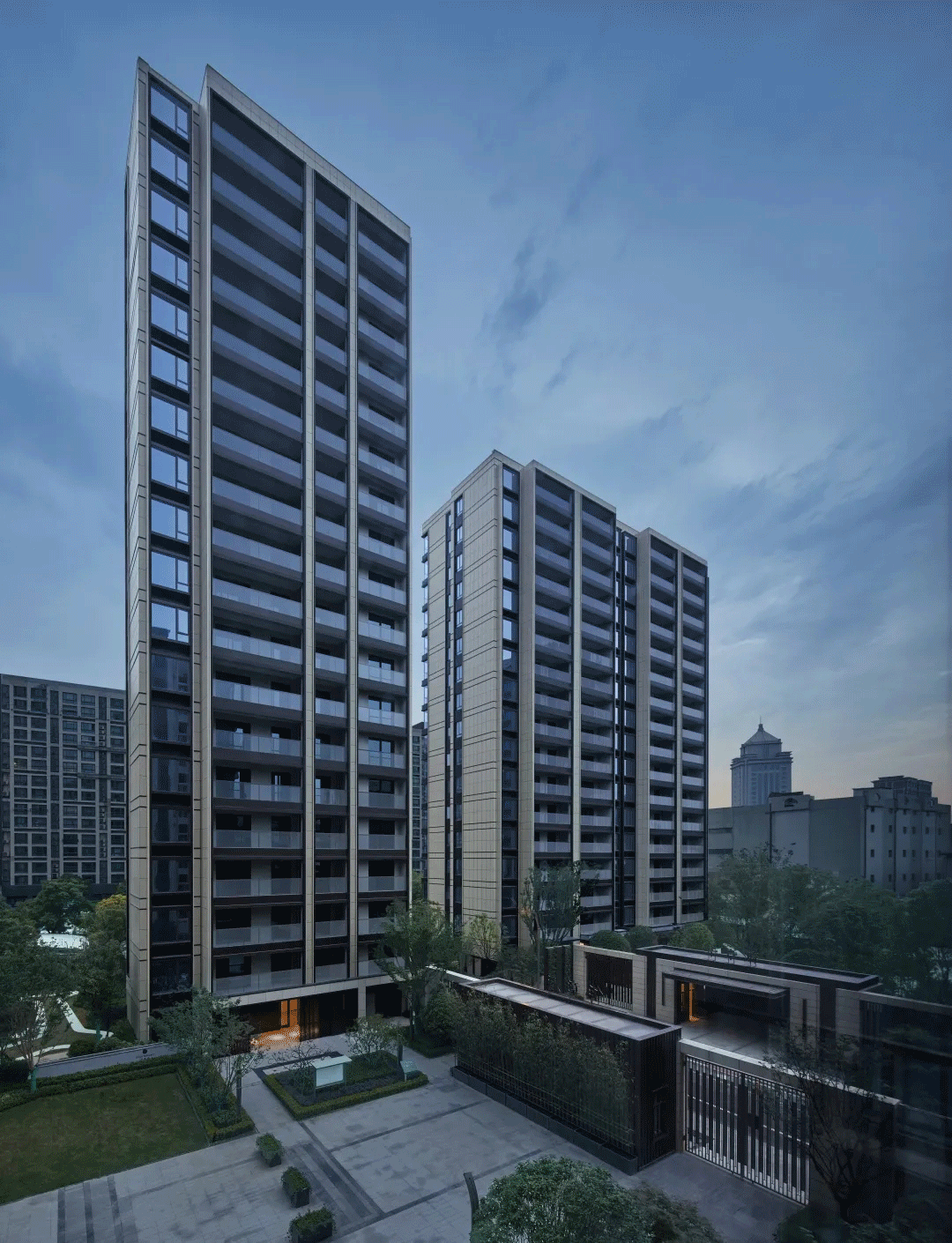

Thermal insulation integrated board facade real picture
-01-
Thermal insulation integrated board features
Performance

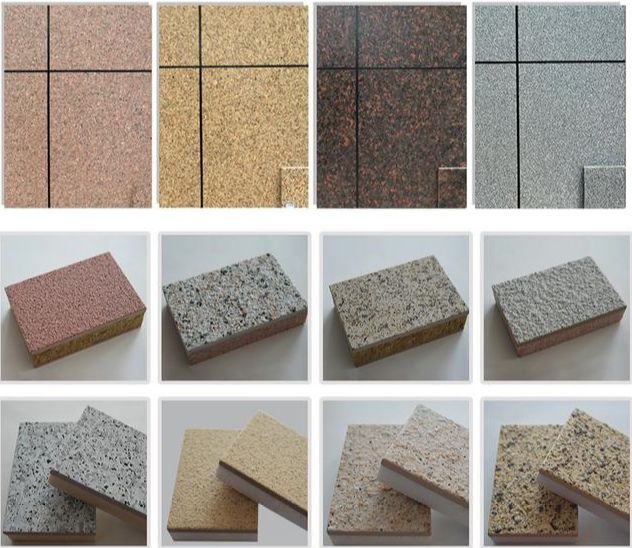

Insulation decoration integrated board diagram
① Thermal insulation, energy saving. Compared with the traditional external wall insulation decorative building materials, it has good cold-resistant thermal insulation performance, greatly reducing the heating and cooling energy consumption, and saving energy expenditure.
② Convenient installation and cost saving. The installation method is simple and fast, and is not limited by seasonal climate and geographical environment, and is suitable all year round. The significantly shortened project cycle not only speeds up the project progress, but also saves construction costs and reduces the comprehensive cost.
③ Light weight, land saving, shock and crack resistant. Insulation decoration integrated board light weight, high strength, good impact resistance. It not only reduces the burden of the building itself, but also greatly reduces the impact of the earthquake on the building.
④ Flame retardant, waterproof, moisture-proof. The core material of the insulation decoration integrated board has been specially treated, and has good flame retardant performance and is safe. The excellent structure of the external wall insulation decoration integrated board and the compact installation mode of the concatenation and socket between the plates avoid the structural damage caused by rain, snow, freezing, melting, dry and wet circulation, eliminate the worry of water seepage of the wall after installation, and effectively avoid the phenomenon of mold on the indoor wall. Even in cold areas, the stable performance of the external wall insulation decoration board has no worries about water seepage deformation, extending the service life of the building.
⑤ Sound insulation and noise reduction. The core material in the middle of the insulation decoration integrated board is a insulation and sound insulation layer composed of high-density polyurethane foam, and its interior is an independent closed bubble structure, which has good sound insulation effect. Suitable for apartments, hospitals, schools and other buildings near the noise area, effectively reduce outdoor noise into the indoor environment, keep the indoor environment quiet and comfortable.
⑥ Green, durable. The insulation decoration integrated board has a stable chemical and physical structure, will not decompose mildew, no radiation, no pollution, green environmental protection. The plate can also be flexibly disassembled and reused to install on other buildings, the remaining construction scraps can also be recycled and reused, in the construction process to a large extent to reduce construction waste, is a high-quality, high-performance environmental protection product, easy to clean, durable, long service life, more than 25 years of decorative life.
⑦ Rich color, high-grade decoration. Any color selection fully reflects the architectural style, and the factory prefabricated production, and aluminum curtain wall is exactly the same, the product is cost-effective, cheaper than dry hanging curtain wall, and more high-end than thin paint plaster insulation.
-02-
Composition and type of insulation decoration integrated board
Constitute | Category
① The insulation decoration is composed of one board
Insulation decoration integrated board, also known as energy-saving insulation decoration integrated board, it is mainly composed of insulation layer, substrate, decorative coating, bonding layer, anchoring parts, sealing materials, etc., widely used in building external wall insulation and decoration.
Insulation layer is divided into rock wool board, real gold board (TPA), inorganic modified non-combustible board (IPS), graphite polystyrene board (SEPS), thermosetting polystyrene board (diamond board), molded polystyrene board (EPS), extruded polystyrene board (XPS), foam ceramic board, etc.

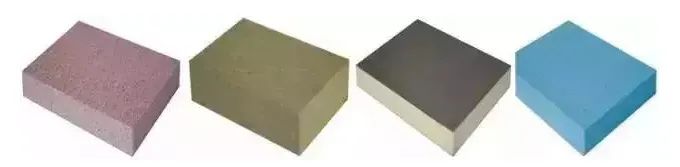

Selection of insulation materials
The substrate is divided into: cement plate, calcium carbonate plate, flexible panel, aluminum magnesium manganese alloy plate, aluminum plated zinc steel plate, zinc aluminum manganese steel plate, glass fiber resin, etc.
Decorative coating is divided into: fluorocarbon metal paint, fluorocarbon solid color paint, fluorocarbon color printing, real stone paint, water in water, water in sand, natural stone, real stone rock flake paint, imitation stone beautiful color paint, fluorocarbon color painted stone paint and so on.
Various decorative coatings
② Types
Common heat preservation decorative integrated board on the market: fluorocarbon metal paint insulation integrated board, fluorocarbon solid color paint insulation integrated board, real stone paint insulation integrated board, aluminum board insulation integrated board, painted paint insulation integrated board, imitation brick insulation integrated board, imitation stone insulation integrated board, artificial cultural stone, ultra-thin stone integrated board.
To be continued……
For more knowledge, please pay attention to: www.gaeabuilding.com
