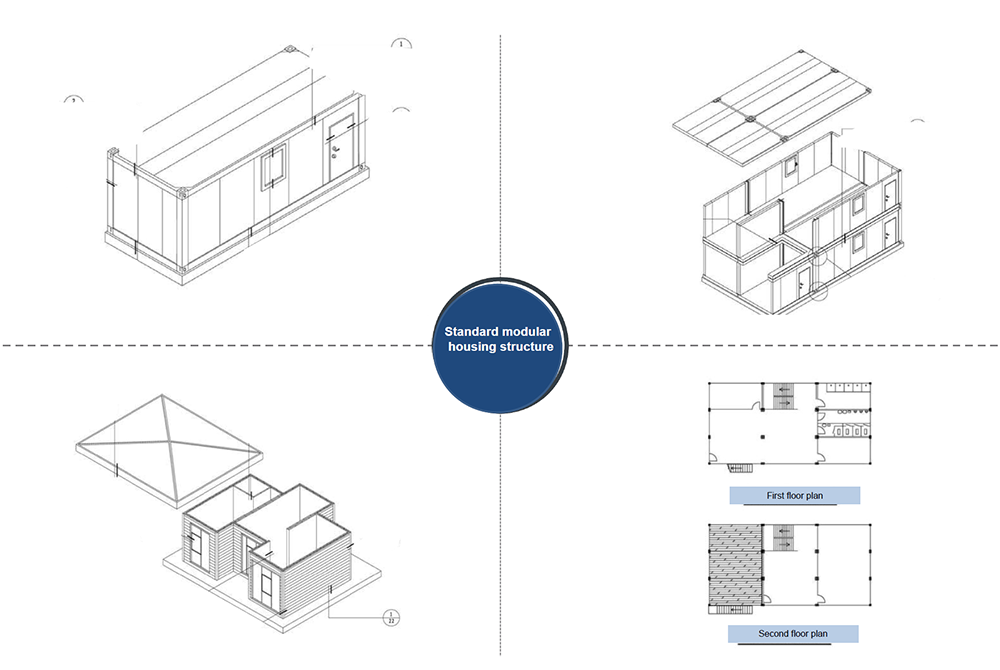

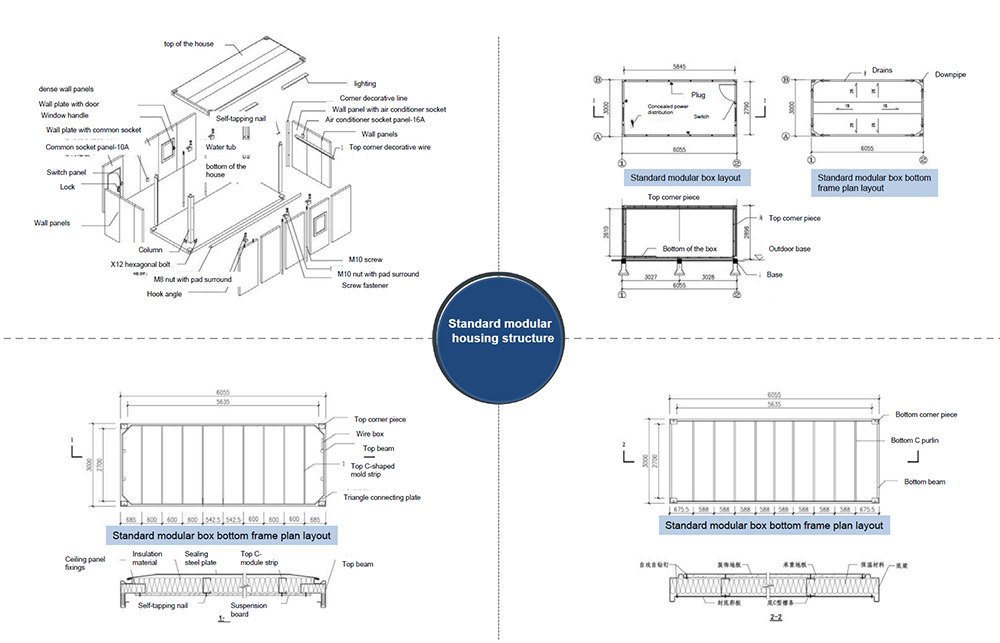

Assembly display of T-type modular house

------------------------------------------------------------

1. Bottom steel beam of box frame connected bybolts and then welded and reinforced.

2. Steel column of box frame connected by bolts.

3. Bottom steel beam diagonal bracereinforcement welding.

4. Bottom frame corner welding reinforcement

5. Box frame top steel beam, insulationinstallation.

6. Box frame installation after the cornerobservation.

7. Box frame installation after the end of theobservation.

8. box frame filled exterior light steel wall installation.

9. box frame filled partition light steel wall installation.

10. exterior decorative panels, insulation wool,interior wall baseboards installation.

11. interior installation of one piece panels installation.

12. Doors and windows installation.
